Customized Cyclone Recovery System Recycler for Powder Coating Machine

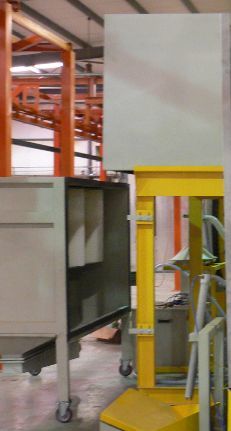

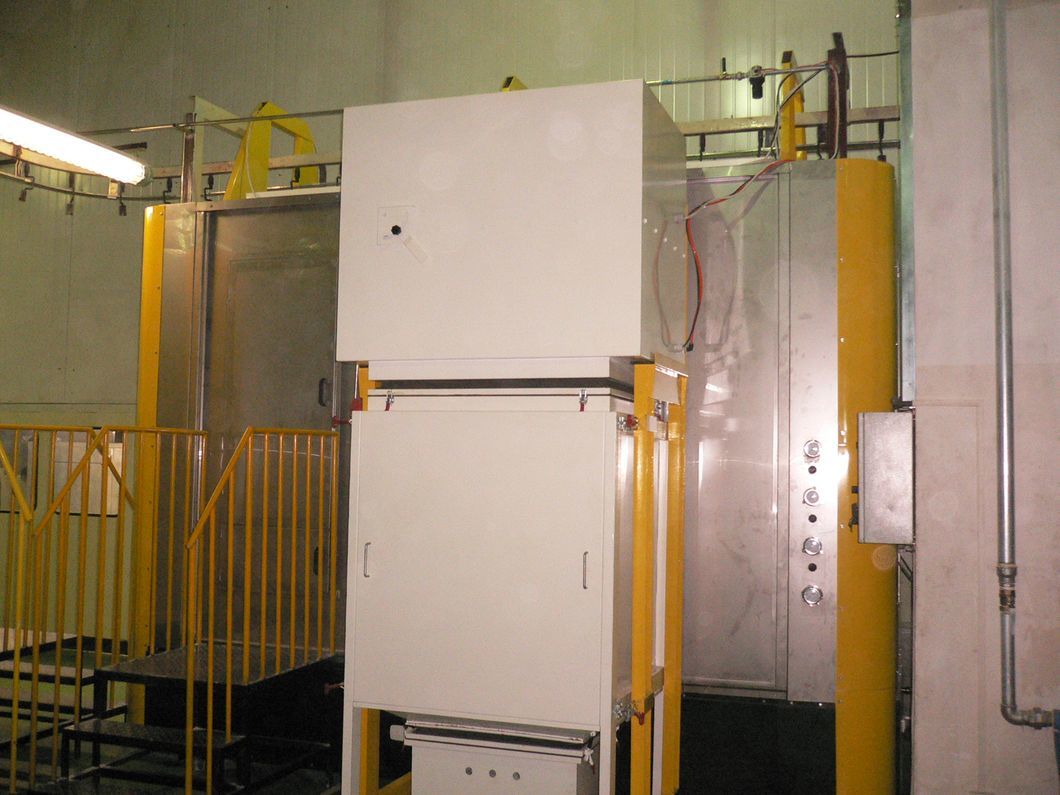

1. Recycle device is consist of upper box and lower box.
2. Starting soft joint to seal between upper box and lower box, the lower box is movable so as to exchange and clean filter element.
3. Recycle fan is set in the upper box. Equipment noise is less than 85dB (standard of China).
4. Recycle system use two sets of filter devices (filter element and final filter). Exhausting tail gas is less than 10mg/m³ (standard of China).
5. Filter element is made from polyester waterproof antistatic material, and it is set in the lower recycle box.
6. Blowback self-cleaning device in the recycle system can clean stockpiled powder of filter element efficiently.
7. Blowback device is made of electron order control instrument and pulse membrane valve.
8. The automatic powder recycle system is located at the bottom of the powder saver. Recycled powder is transported by a powder recycle pump into an electric powder filter, where it is screened and returned to the powder supply bucket. Here, it is evenly mixed with new powder after fluidization.
9. At the end of a shift, the recycle fan is turned off, allowing the pulse blowback self-cleaning system to operate either singly or repeatedly to thoroughly clean the recycle filter elements.

No.	Item	Parameter and description
1	Model	CHG-HS-7000
2	Number of filter element	5 pieces
3	Specification of filter element	∮325×660mm
4	Material of filter element	waterproof polyester
5	Filter precision of filter element	5μm
6	Model of fan	4-72-4.0A
7	Model of motor	Y132S1-2-5.5kW 3~380V 50Hz
8	Recycling air	6500m3/h
9	Cleaning form of filter element	Pulse automatic blowback
10	Voltage of blowback valve	DC24V
11	Blowback pressure	0.4~0.5MPa
12	Sealing way between upper and lower box of saver	Air sealing
13	Moving way of lower box of saver	Manual movement
